Description
PTP800 ODU-A 11 GHz Lo B5, TR 490 & 500, Lo, B5 (10700.0 – 10890.0 MHz)
Licensed Radio Series
PTP 800
Network Protocol
IP
Broadband System Configuration
Split Mount
Broadband Frequency Band
11 GHz
Frequency Range
10700.0-10890.0 MHz
Sub Band
B5
Data Rate
10 Mbit/s
Maximum Data Rate
368 Mbit/s
Carrier Aggregation
Single Carrier
Modulation
QPSK – 256QAM
Interface
1 x 100/1000 BaseT + 1 x 1000 BaseT GigE
Security/Encryption
AES-128, AES-256, FIPS-197, FIPS 140-2
Compression
No
Proprietary Antenna Interface
RR (Rectangular Remec)
Operating Voltage
-48VDC (-40.5V DC to -60V DC)
Channel Bandwidth
10MHz, 30MHz, 40MHz
Transmit Power
28dbm @ QPSK
Temperature Range
-27-131 deg F
Mfg. Warranty
1 Year

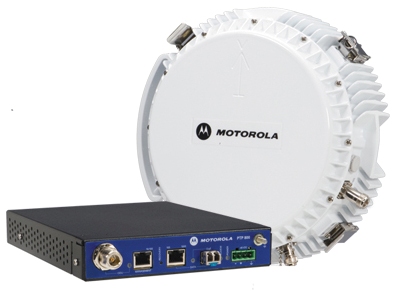

OTOROLA PTP 800 LICENSED ETHERNET MICROWAVE
PTP 800 solutions can efficiently and affordably transport the data, voice and video that your bandwidth-intensive applications require without having to contend with other communicators in your radio-frequency (RF) band.
HIGH-PERFORMANCE, SCALABLE
Our Point-to-Point (PTP) 800 Licensed Ethernet Microwave solutions operate in the 6 to 38 GHz1 licensed bands, at up to 368 Mbps throughput2 (full duplex) and with user-configured channel bandwidths from 7 to 56 MHz. With upgradeable capacity from 10 Mbps to full capacity via software key, the systems offer exceptional cost efficiency and scalability. Whether your organization is a corporate enterprise, carrier, service provider, school, hospital, utility company, municipality or government agency, our PTP 800 radios will provide you with high-performance, ultra-reliable connectivity.
EXTREME DURABILITY
PTP systems have logged more than two billion field hours. As a result, our radios are proven to withstand the rigors of outdoor use. Radios perform steadfastly in winds up to 150 miles per hour (242 kph) and temperatures from -27° to 131° F (-33° to 55° C).
WIRELESS NETWORK SOLUTIONS
At Motorola, our unrivaled wireless network solutions include indoor WLAN, outdoor wireless mesh, point-to-multipoint and point-to-point networks as well as voice over WLAN systems, giving you the agility and seamless connectivity you need to grow your business or better protect and serve the public. Combined with powerful software for wireless network design, security and management, our solutions deliver trusted networking and anywhere access to organizations worldwide.
